Product Description

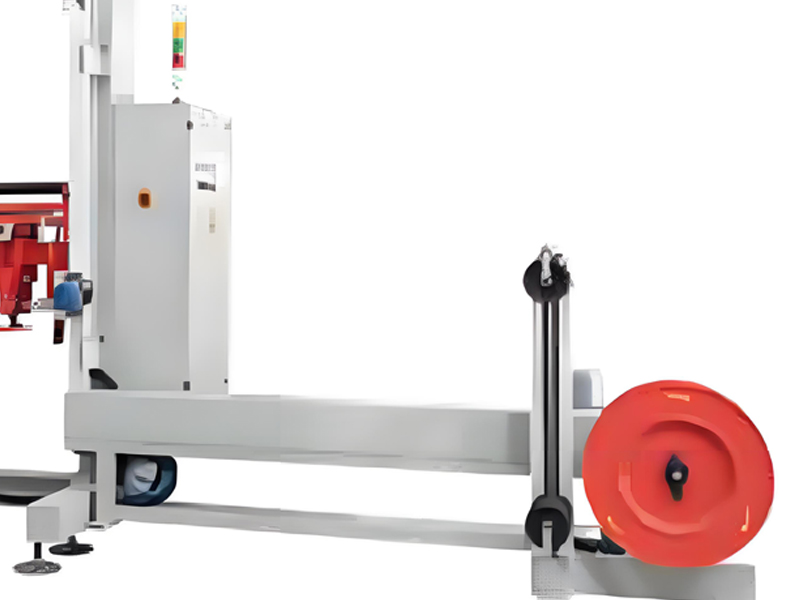

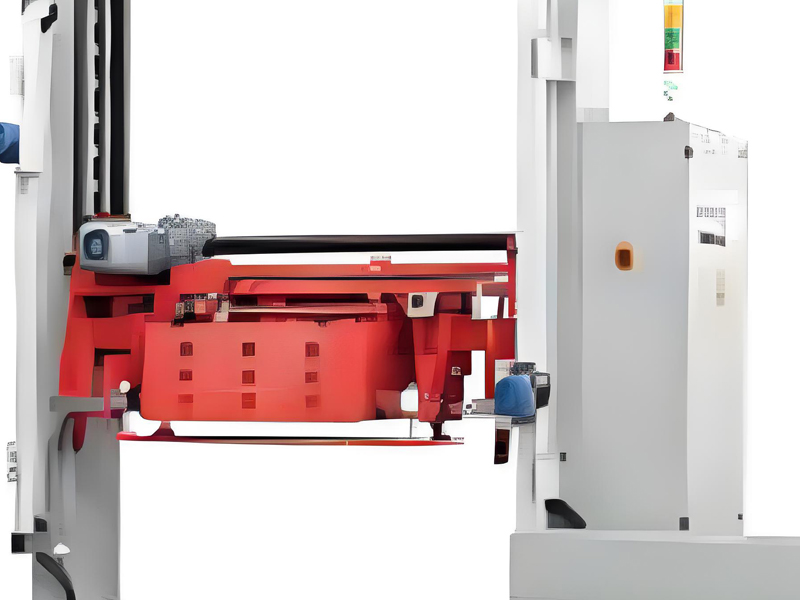

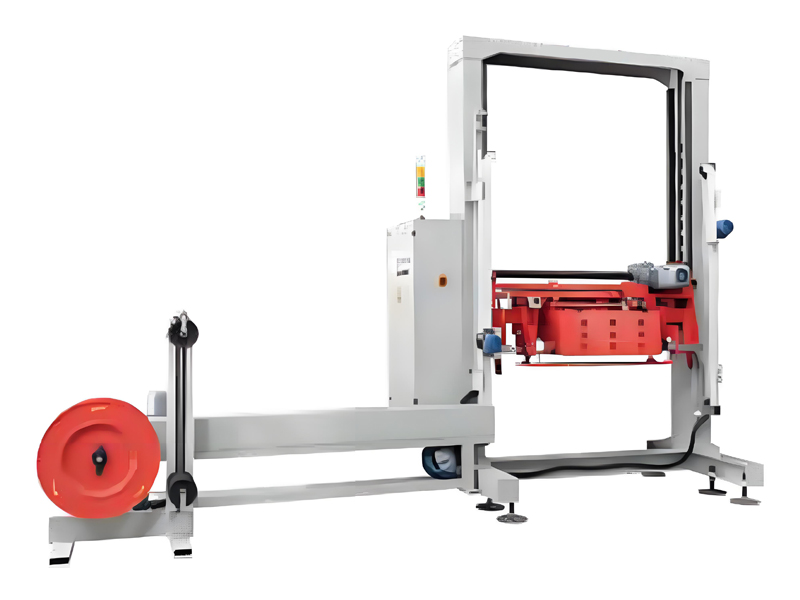

The Automatic Vertical Strapping Machine with Top Presser adopts a sword-type strap feeding system and an adjustable top-pressing mechanism, ensuring secure strapping and high efficiency. EOL Strapping Equipment widely used in heavy industries, building materials, metal processing, port terminals, and large-scale warehousing and logistics.
Main Technical Parameters of Strapping Machine:
Power supply: 380V, 50/60Hz, 4.0kW
Overall dimensions: 4250 × 800 × 3300 mm
Frame dimensions: Width 1500 × Height 1800 mm (customizable)
Strapping speed: ≤15 seconds per strap
Specifications of Automatic Strapping Machine:
Width: 9–19 mm (±0.1)
Thickness: 0.55–1.0 mm (±0.1)
Reel specifications of Automatic Vertical Strapper (PP/PET reel):
Width: 160–180 mm
Inner diameter: 200–210 mm
Outer diameter: 400–500 mm
Equipment Features:
Dual mode of top press and sword-type strap feeding: The top press system ensures the strap closely adheres to the material surface, while the sword-type strap feeding ensures smooth feeding and is not prone to jamming;
Powerful strapping: The Carton Strapping Machine supports a maximum strapping width of 1500mm, accommodates high-tension strapping tapes, and meets the strapping needs for large and heavy goods;
Fully automated integrated operation: One-button start, automatically completes the entire process of strap feeding, tightening, sealing, and cutting, with simple operation;
Sturdy and durable structure: Constructed with heavy-duty steel and high-precision transmission components, suitable for high-intensity continuous working environments;
Strong tape compatibility: Supports various specifications of PP and PET tapes, meeting different strapping strength requirements;
Intelligent control system: The Packaging Strapping Machine allows preset strapping parameters, features self-diagnosis and alarm functions for faults, and ensures easy maintenance;
Customizable frame: End of Line Strapping Machine The frame width and height can be flexibly adjusted according to user's cargo dimensions and site requirements.
