Product Description

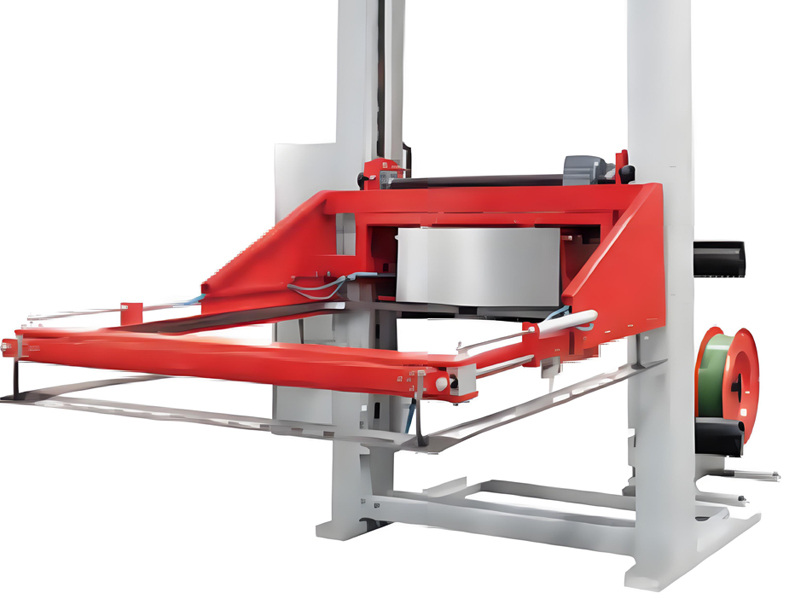

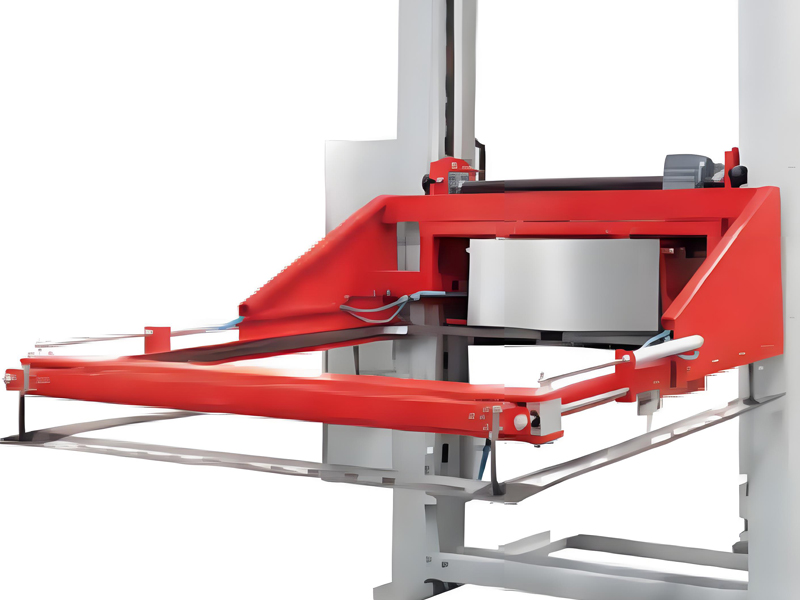

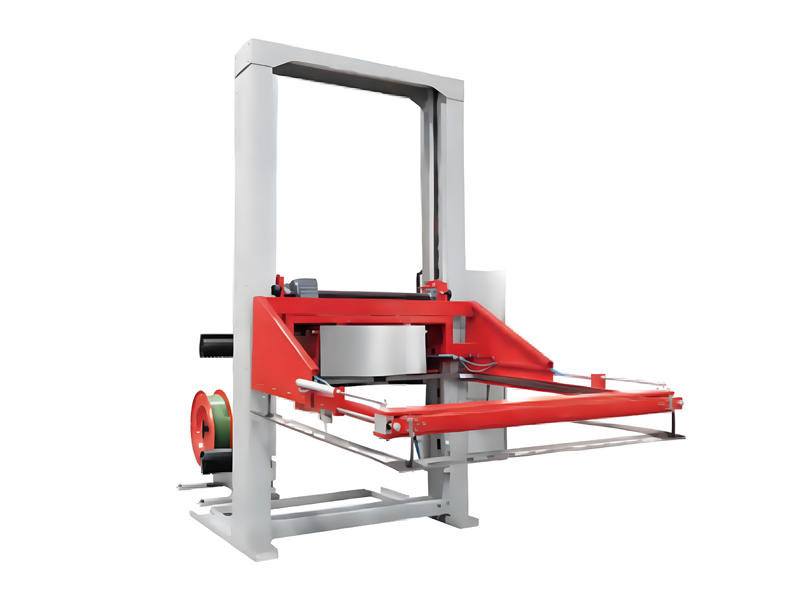

The Automatic Horizontal Strapping Machine adopts a horizontal strap feeding design, capable of performing stable horizontal strapping for palletized goods, building materials, profiles, and large cartons. With a stable structure and a high level of automation, the Strapping Machine is widely used in industries such as logistics and warehousing, building material processing, large-scale manufacturing, and port terminals, effectively enhancing strapping efficiency and packaging safety.
Main technical parameters of the Carton Strapping Machine:
Power supply: 380V, 50/60Hz, 3.1kW
Air pressure: 0.6–0.8 MPa
Overall dimensions: 1930 × 3240 × 2800 mm
Frame dimensions: width 1500 × height 1500 mm (customizable)
Strapping speed: ≤15 seconds per strap
Strapping tape specifications: width 9–15 mm (±1), thickness 0.55–1.0 mm (±0.1)
Tape reel specifications (PP strap reel):
Width: 160–180 mm
Inner diameter: 200–210 mm
Outer diameter: 400–500 mm
Equipment features:
Horizontal strapping design: The Conveyor Strapping Machine is suitable for scenarios requiring horizontal fixing, such as palletized goods, large cartons, and pipes;
High level of automation: One-button start, automatically completing the entire process of feeding, tightening, bonding, and cutting the strap;
Sturdy and reliable structure: Built with a heavy-duty steel frame, suitable for continuous high-intensity working environments;
Adjustable strapping force: The Horizontal Strapping Machine allows flexible adjustment of the strapping tension according to the material of the goods and strapping requirements;
Strong compatibility: The Packaging Strapping Machine supports multiple strap widths and thicknesses, compatible with standard PP straps, PET straps, and other materials;
Flexible customization: EOL Strapping EquipmentThe frame dimensions and certain functions can be customized according to user requirements.
