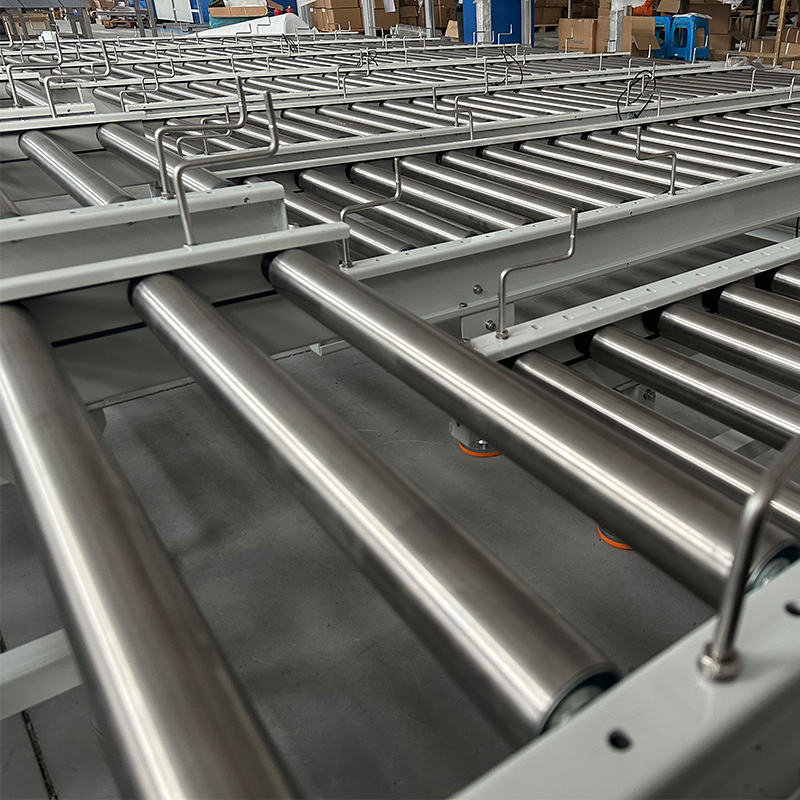

Powered Roller Conveyor System

Get Latest Price

Contact Now

Product Description

The powered roller conveyor system is a core material handling equipment widely used in modern warehousing, manufacturing, distribution and logistics industries. Different from gravity roller conveyors that operate relying on cargo weight and equipment slope, this system actively drives rollers through an external power source. It enables controlled and efficient cargo transportation as well as End Of Line Packaging operations with minimal manual intervention, realizing seamless point-to-point cargo transfer. Currently, it serves as the key supporting equipment for intelligent intralogistics and automated production lines in factories worldwide.

Core Components and Working Principle

Featuring a modular and integrated structure, the system delivers stable operation and flexible customization for diverse application scenarios, and can be matched with End Of Line Packaging Equipment. The core components and their respective functions are introduced as follows:

Rollers: As the core parts in direct contact with goods, rollers are commonly made of galvanized steel, stainless steel or plastic-coated materials. Some rollers are rubber-coated to increase friction and prevent cargo slippage, making them compatible with supporting operations of the End Of Line Case Sealer. The diameter and spacing of rollers are fully adjustable. A key installation rule is that even the smallest goods must be supported by at least three rollers at all times to ensure stable transportation.

Drive Unit: Serving as the power core of the system, it is mainly divided into centralized drive and individual drive types. The centralized drive transmits power to all rollers via chains or belts; the motor-driven roller (MDR) type integrates small geared motors inside each roller, achieving higher control accuracy.

Frame Structure: It is a rigid frame designed to support rollers and bear cargo loads, generally made of powder-coated steel, aluminum or stainless steel for high durability. It can be customized into straight, curved, extendable and other forms according to factory layouts, adapting to various production and logistics layouts and matching End Of Line Packaging application scenarios.

Control System: Equipped with a PLC controller, photoelectric/proximity sensors and speed regulators, the system supports adjustable conveying speed, forward and reverse rotation of rollers, zoned accumulation conveying, and intelligent linkage with other automated equipment to adapt to full-process automated operations.

Accessories: The supporting accessories include merge units, transfer units, turntables and adjustable legs with swivel casters. They enable conveyor line merging, right-angle cargo transfer, conveying direction adjustment and flexible equipment movement, meeting diverse production and transportation requirements.

The working principle of the complete conveying system matched with the Case Sealing Machine is simple and clear, which is suitable for Post-Packaging Production Line working conditions. The motor drives the reducer or directly supplies power to the rollers, and the rotating rollers push goods forward through friction. The control system can adjust the conveying speed and operating direction according to production demands, while the built-in sensors monitor cargo positions in real time to realize automatic equipment start-stop and cargo accumulation and buffering. This effectively avoids cargo collision and damage, ensuring stable and orderly post-packaging transportation and case sealing operations.
