Product Description

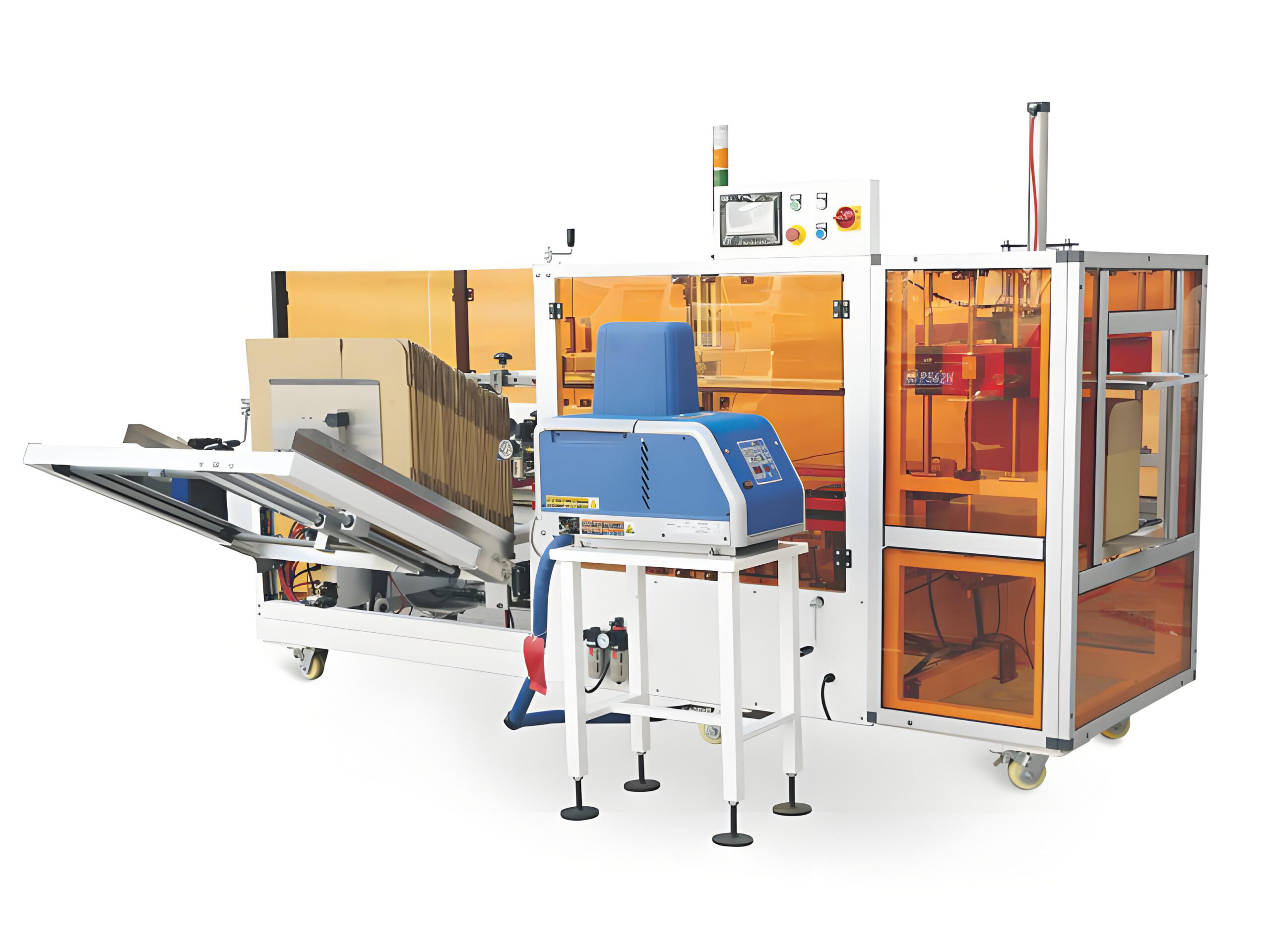

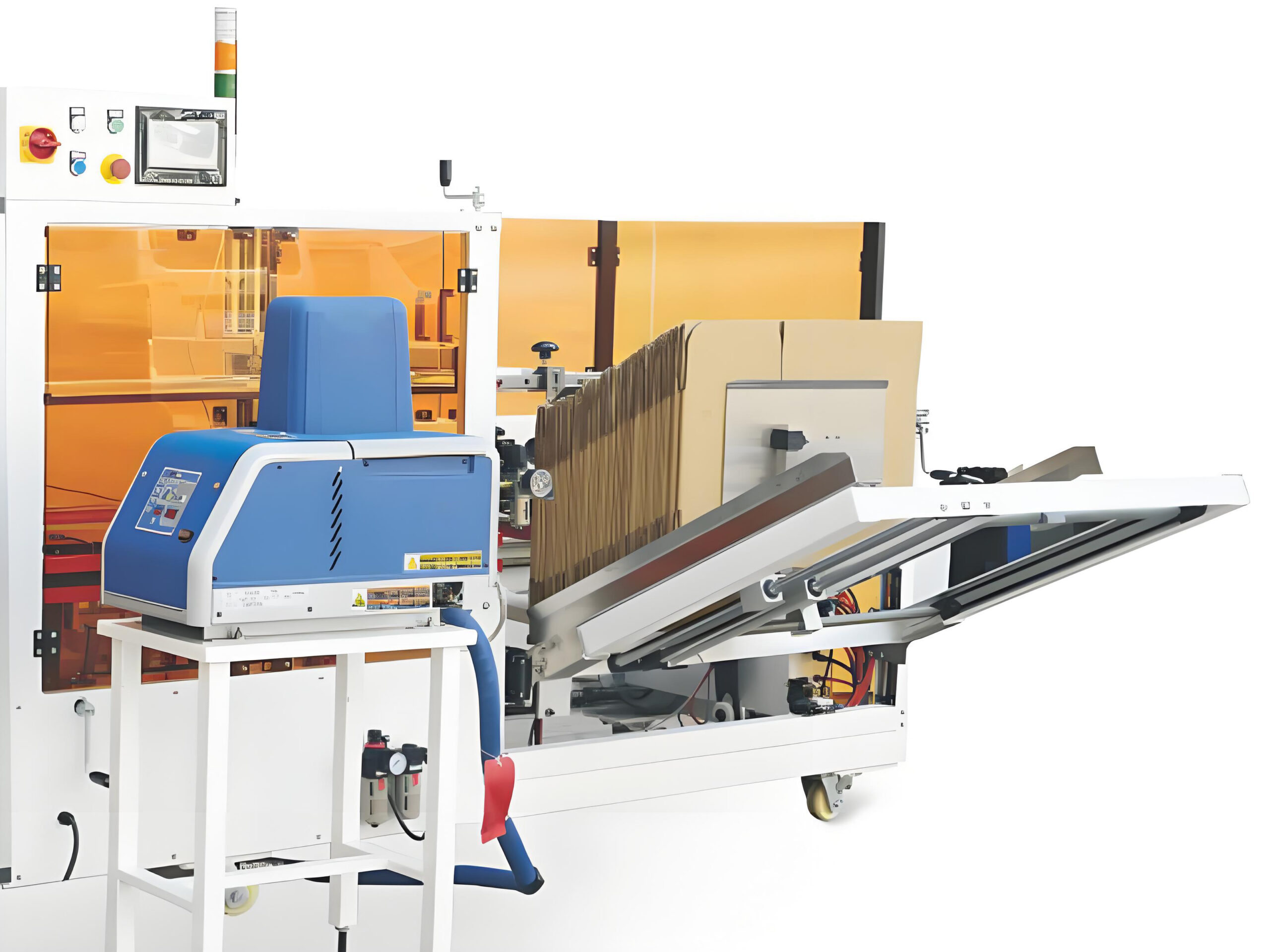

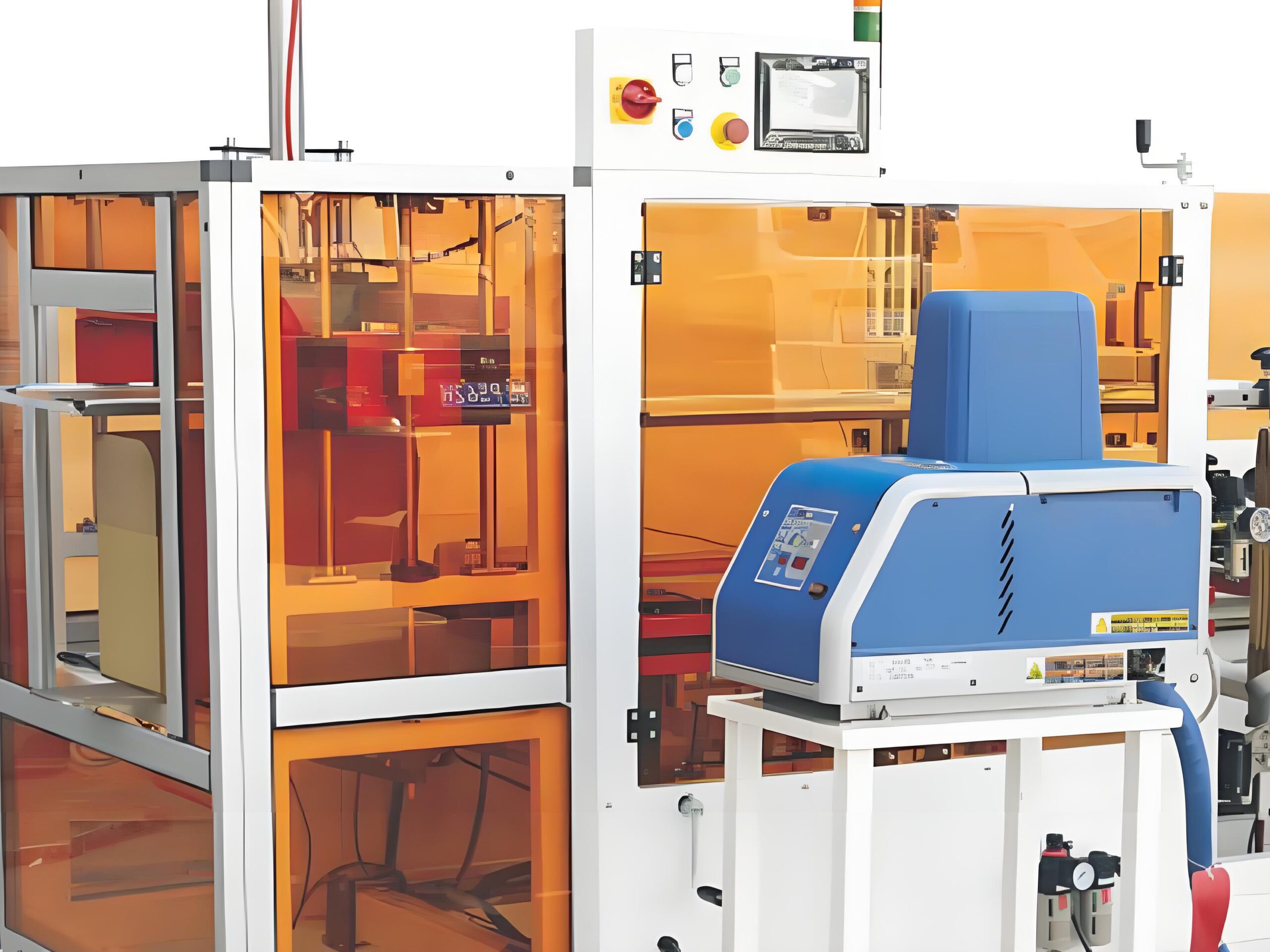

Hot Melt Carton Erector Utilizes a cylinder-driven forming structure combined with hot melt adhesive bonding to ensure cartons are formed squarely and the bottom is securely sealed, enhancing packaging automation. High Speed Carton Erector is suitable for automatic carton forming and bottom sealing operations requiring high-quality, high-strength sealing.

Carton Forming Machine Technical Parameters:

Applicable carton dimensions: 300 ≤ L < 500 mm, 200 ≤ W < 400 mm 500 ≤ L + W ≤ 900 mm, 300 ≤ H + W/2 ≤ 620 mm

Forming speed: 10–12 boxes/min (stable)

Mechanical dimensions: L3000 × W1950 × H1500 mm

Applicable power supply: 220/380 V, 50 Hz

Applicable air source: 0.6 MPa

Air consumption: 400 NL/min, power consumption: 0.4 KW (excluding glue machine)

Applicable material: granular hot melt adhesive

Machine weight: 400 kg

Case Forming Machine Features:

Suitable for automatic carton forming and bottom sealing operations requiring hot melt adhesive sealing.

Case Erector And Packer Utilizes a cylinder-driven forming mechanism.

Forming speed depends on carton dimensions.

Can operate as part of a production line or standalone, completing suction, forming, bottom folding, and sealing in one process.

Equipped with a carton shortage alarm function.

Cartons are stored vertically, allowing for replenishment without stopping the machine.

Suitable for batch use of the same carton specifications at one time; manual adjustment is required when changing specifications.

Standard machine table height: 650 mm.

The hot melt glue machine is an optional accessory; customers may provide their own.

For equipment selection, a specific list of carton specifications is required for reference. Special proportion cartons such as narrow-long, short-tall, or low-wide boxes are not within the standard machine’s scope but can be customized.
