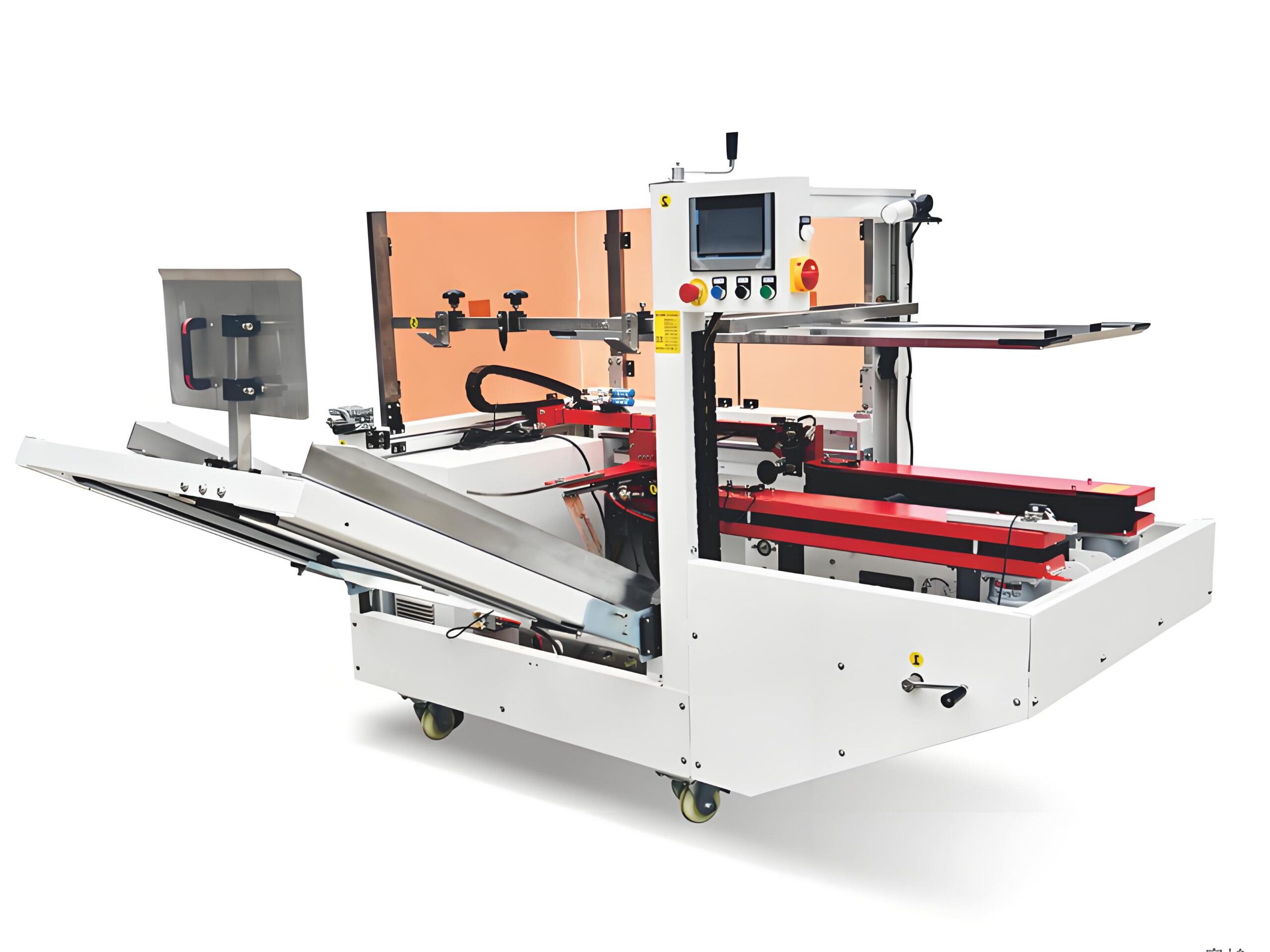

Fully Automatic Servo Carton Erector

Get Latest Price

Contact Now

Product Description

making it widely applicable in automated packaging processes for industries such as food, beverages, pharmaceuticals, daily chemicals, and electronics. It is a key equipment for achieving efficient and intelligent packaging.

Technical Parameters of Carton Erector:

Applicable Power Supply: 220V 50Hz 1.9KW

Applicable Air Pressure: 0.5~0.6Mpa

Air Consumption: 450NL/min

Machine External Dimensions: L2035W1901H1545mm

Applicable Carton Sizes: L280-500*W160-400*H150-400mm

Tape Width: 48-72mm

Forming Speed: Adjustable, 5-15 boxes/minute

Table Height: 650mm

Unpacking Method: Case Forming Machine vertical servo forming. When changing specifications, the machine's hopper, stopper, discharge width, and height are manually adjusted, while the suction and pushing positions can be switched with one touch on the screen. Fully servo-switching models can also be customized according to customer requirements.

Features of Carton Forming Machine:

The equipment design and manufacturing meet the requirements of production line processes and layout planning, with an aesthetically pleasing appearance and excellent manufacturing craftsmanship.

Low electricity and water consumption, easy and quick operation, adjustment, and maintenance.

High Speed Carton Erector has effective self-protection functions, such as overload protection.

Alarm functions for tape absence or lack of cardboard boxes.

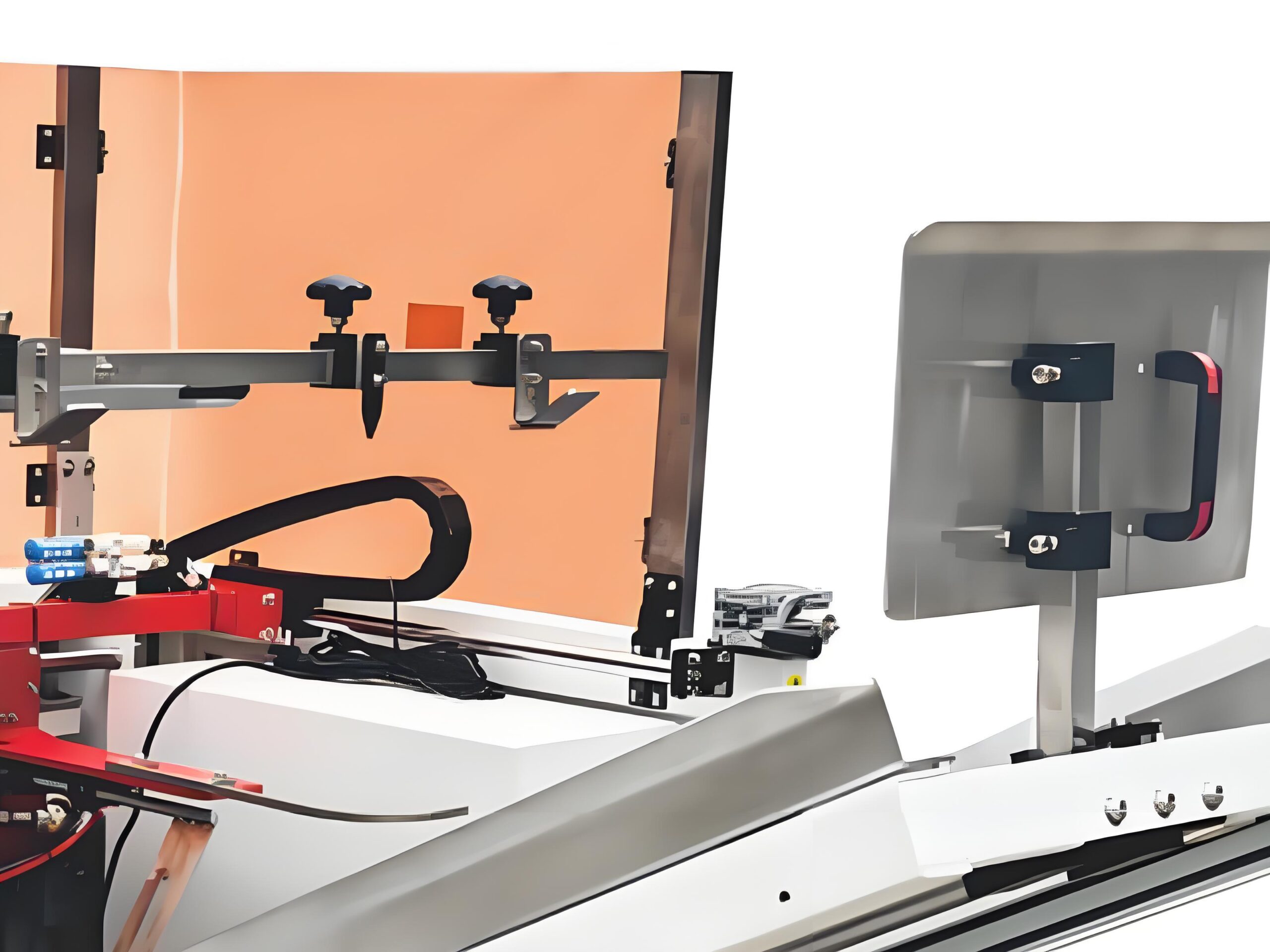

Hopper Mechanism: Case Erector And Packer can hold approximately 50 unfolded cartons at a time (depending on carton thickness) and can be replenished at any time.

Fully utilizes the data controllability of servo motion to quickly and flexibly handle forming actions, making it more adaptable to cartons of different materials.

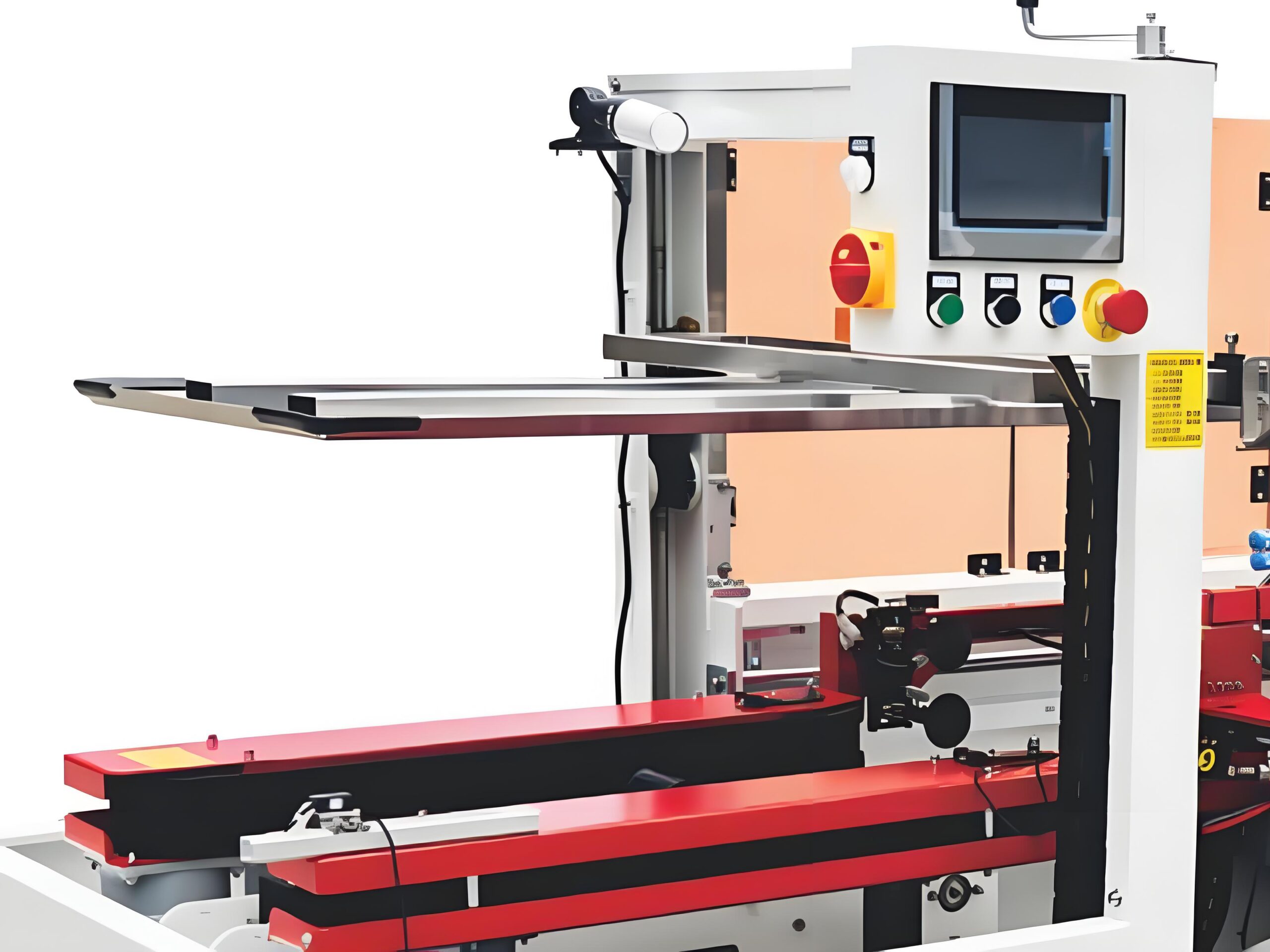

Before formal operation, all High Speed Case Erector And Packer length and width data must be manually preset and stored in the system. When switching specifications, first retrieve the carton specifications on the touch screen, then manually adjust the discharge size and hopper size, reducing manual setup steps and improving operational stability after model changeover.
