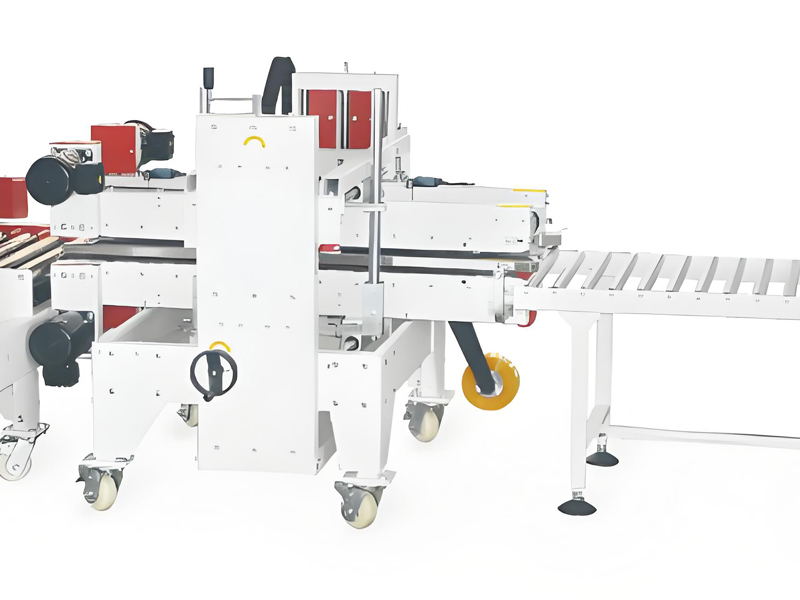

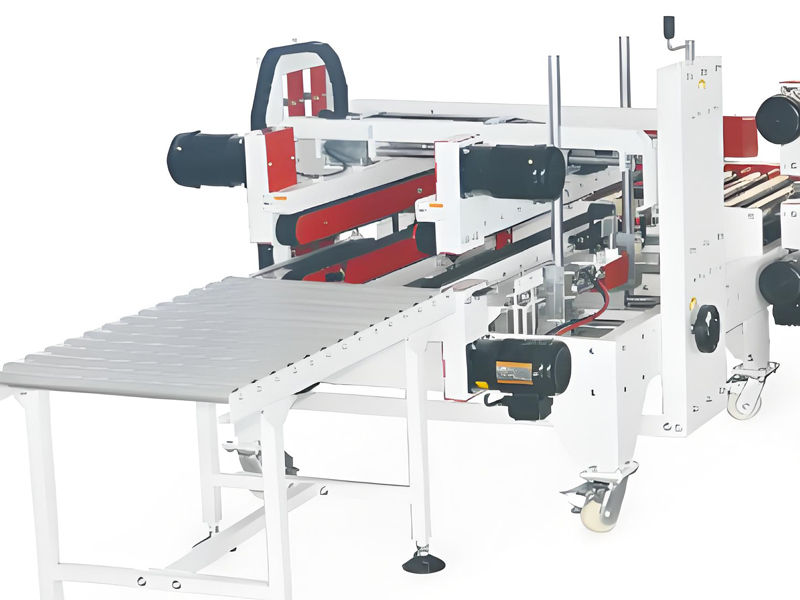

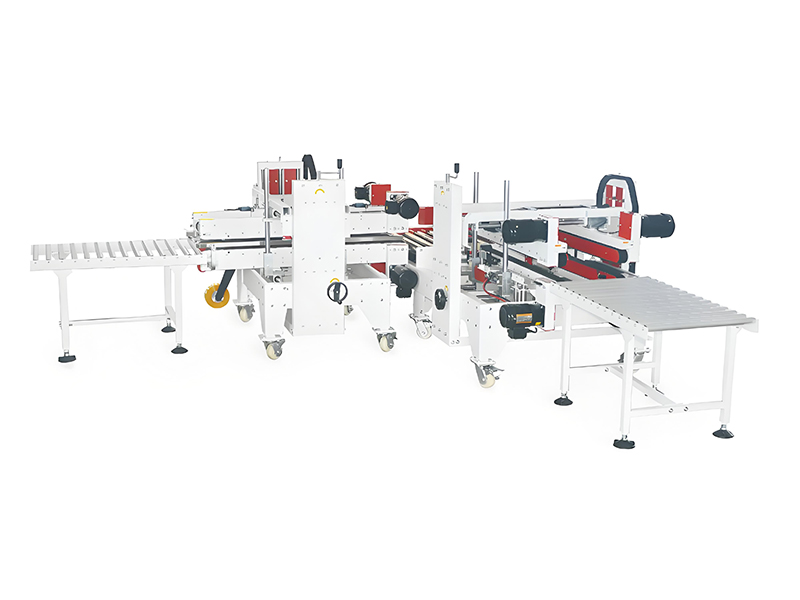

U-Shape E-commerce Carton Sealer Adopts a U-shaped three-side automatic sealing process, capable of completing the efficient sealing of the top, bottom, and side of the carton in one go, achieving an aesthetically pleasing and smooth packaging result. The Case Sealer features a compact structure and convenient adjustments, suitable for common small to medium-sized carton specifications in e-commerce packaging. It is ideal for batch packaging in e-commerce warehouses, logistics distribution centers, and e-commerce enterprises.
Technical Parameters:
Carton Dimensions: L(200–400)×W(200–400)×H(60–200) mm
Applicable Capacity: 4–6 cartons/min
Mechanical Dimensions: L1400×W1200×H1200 mm
Customizable: L1910×W1150×H1200 mm
Power Supply: 220V 50Hz single-phase
Power Consumption: 1 kW
Applicable Tape: W48 or W55 (choose one)
Machine Weight: Approximately 600 kg
Case Sealing Machine Applicability: Suitable for U-shaped sealing and three-side sealing of top-bottom cover cartons
Table Height: 620 mm
End Of Line Case Sealer Features:
Applicable Cartons: Top-bottom cover cartons and aircraft box cartons.
Manual adjustment of width and height based on carton specifications, convenient and fast.
Automatic sealing, smoothing, and fast, stable handling of the three top and bottom corners of the carton. Sealing results are smooth, standardized, and aesthetically pleasing.
Adopts an L-shaped connection process. The standard machine’s L-direction faces the entrance and turns left. If turning right is required, the corner sealing machine must be customized.
EOL Carton Sealer is suitable for batch use of the same carton specification at the same time. Width and height are manually adjusted when changing specifications.
Custom Case Sealer has a standard table height of 620 mm.
The tape applicator structure is precise, sturdy, operates smoothly, and has a long service life.
