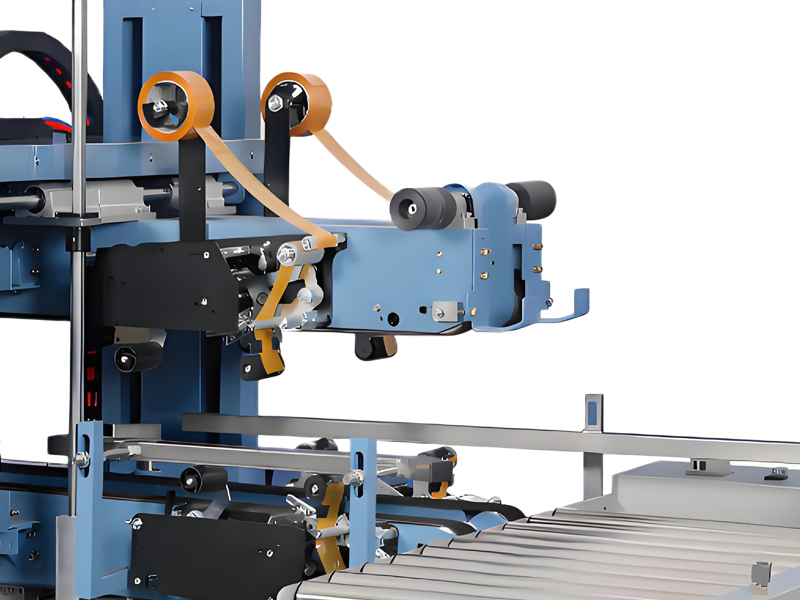

Corner Tape Case Sealer Can complete the simultaneous sealing of the top and bottom flaps as well as the two side corners of the carton in one go, forming an "I"-shaped tape sealing structure. The equipment adopts a modular design, supports flexible adjustment and customization, and is widely applicable to industries such as food, chemicals, electronics, and pharmaceuticals, where high requirements for packaging sealing and appearance are essential.
Automatic Case Sealing Machine Parameters
Power Voltage: AC220V/50HZ
Power: 800W
Conveyor Speed: 20M/MIN
Applicable Tape: 48MM, 60MM, 75MM
End Of Line Case Sealer Drive Method: Two-side conveyor belt drive
Applicable Sealing Dimensions: Minimum L340×W200×H180MM, Maximum L700×W500×H500MM
Overall Dimensions (L×W×H): 2080×1480×1520MM
Machine Weight: Approximately 440KG
EOL Carton Sealer Features
Custom Case Sealer features a unique appearance design and reasonable structural performance.
When used in conjunction with a straight-line carton sealer, it completes "I"-shaped carton sealing in one go.
The machine includes a 90-degree turning and pushing mechanism for cartons.
Carton size adjustment for width and height is manual.
Semi-automatic Corner Sealing Machine adopts a drive method using two lower-side belts.
The table height is adjustable, and it can be used as a standalone unit or integrated into a production line.
In addition to standard specifications, non-standard customization is accepted.
